The speedometer sending unit required for electric speedometers is NOT included in the complete package and must be purchased separately.

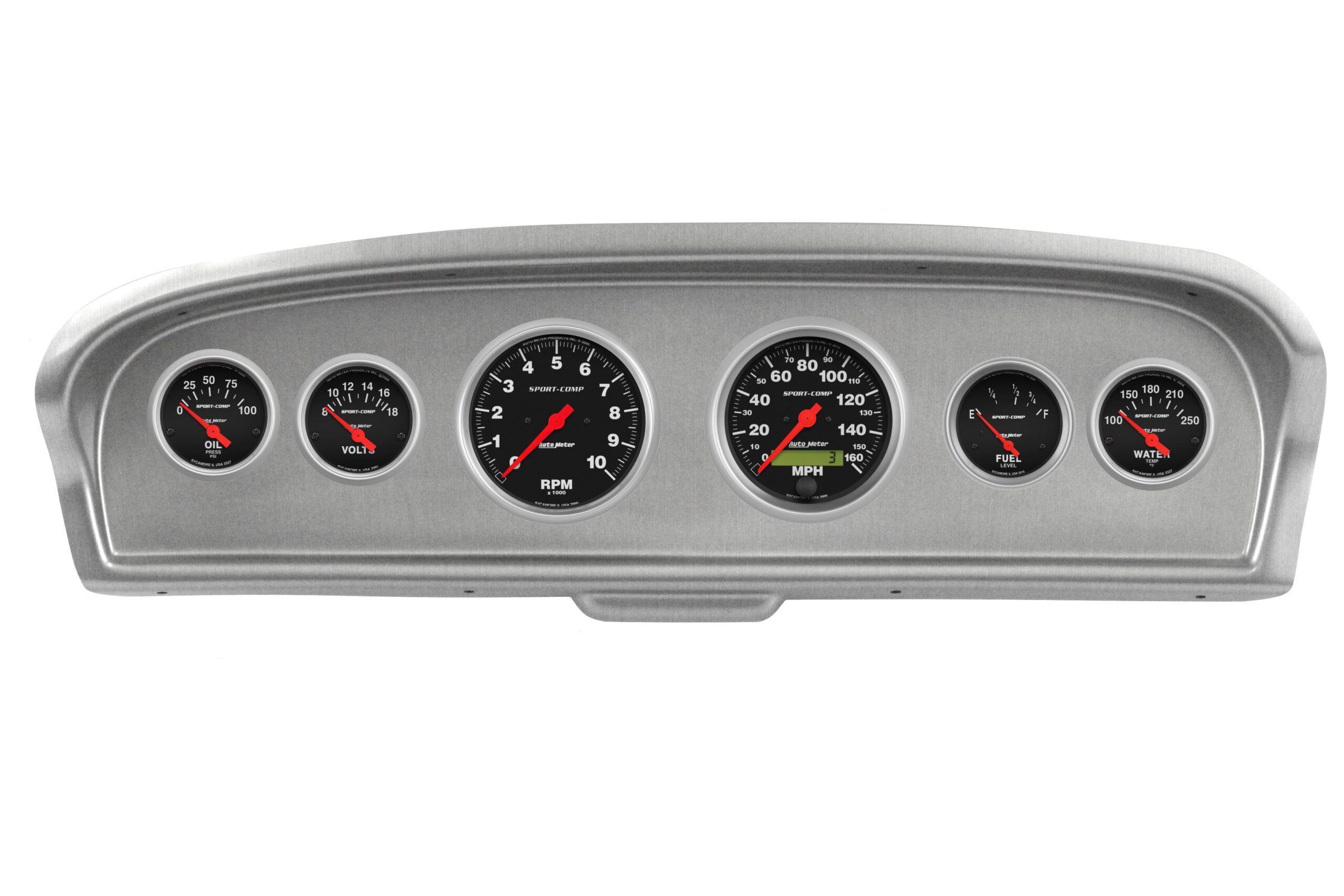

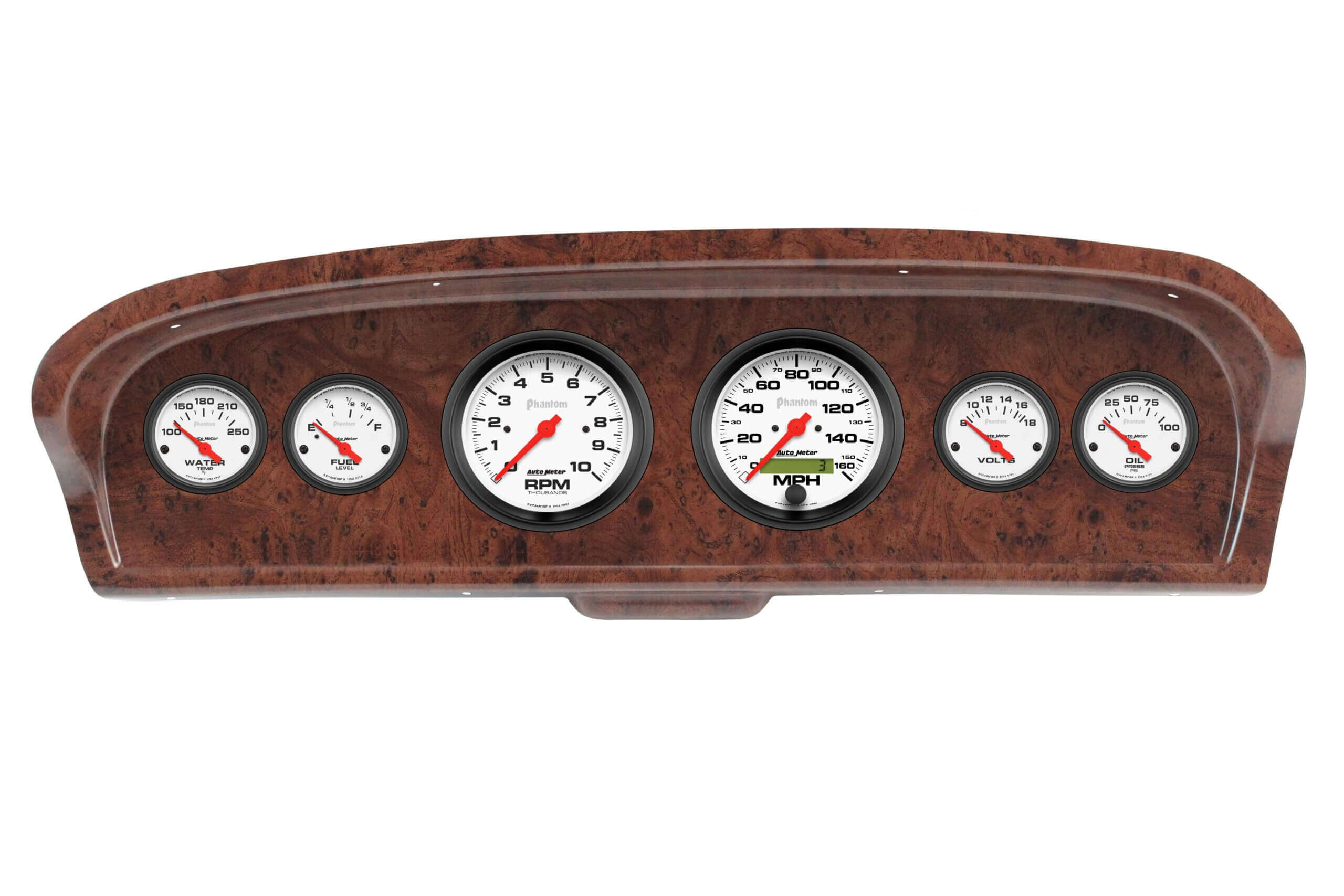

Complete Package Comes With:

• Gauge Wiring Harness*
• Oil Pressure and Water Temperature sending units*
• Turn Signal, High Beam and Parking Brake Indicator (LED) Kit*
• 3-3/8″ Speedometer
• 3-3/8″ Tachometer
• 2-1/16″ Fuel Level Gauge
• 2-1/16″ Oil Pressure Gauge
• 2-1/16″ Water Temperature Gauge
• 2-1/16″ Volt Gauge

*Wiring harness and sending units are NOT INCLUDED with Sport Comp Mechanical, Ultra-Lite Mechanical, Phantom Mechanical, and Concourse Series gauges.

Concourse kits come with their own sending units for the water temp and oil pressure gauges. LED kit not included.

Documents

• Classic Dash General Installation
• Classic Dash Wiring Diagram
• Concourse Series Gauge Instructions
• Electric Speedometer Calibration
• GPS Module Instructions
• 1968-70 MOPAR B-Body Installation
• 1982-84 Firebird Installation
• 1987-93 Mustang Wiring Harness
• 1994-04 Mustang Installation
• 2010-15 Camaro Installation

Tools

What’s Needed For A Dash Installation:

Before embarking on the installation, we recommend rounding up the following tools and supplies:

• Side cutter or “dykes” pliers
• Soldering iron with solder (or “red” butt connectors)
• Electrical/crimping pliers
• Multi-meter (voltage tester)
• Drill motor
• 5/32″ drill bit
• Crazy glue
• Center punch or ice pick
• Tape measure
• Screwdrivers (Phillips & blade type)
• Razor blade or box cutter
• Hand files (fine and medium)
• Open end wrench or socket set (3/8″ through 9/16″)
• Shrink wrap with heating device or electrical tape for connections
