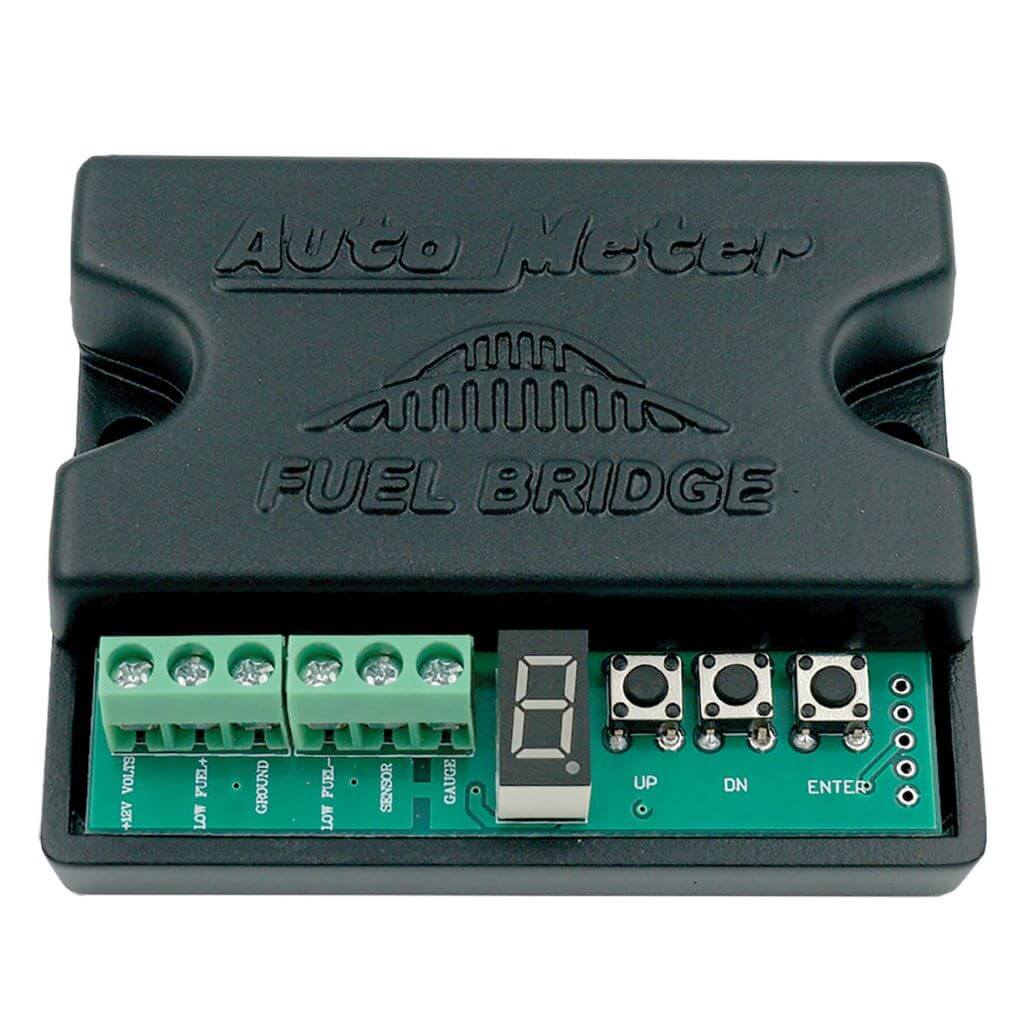

Fuel Signal Adapter

*12 – Universal Fuel Signal Adapter

$89.95

Autometer Universal Fuel Signal Adapter allows use for any fuel level gauge with stock or aftermarket fuel sending unit.

  1. 240-33 ohm, standard aftermarket
  2. 0-30 ohm, GM Type ’64 and earlier
  3. 0-90 ohm, GM Type ’65 and later
  4. 73-10 ohm, Ford Type ’86 and earlier
  5. 16-158 ohm, Ford Type ’87 and later
  6. 90-0 ohm, Toyota and Nissan ’85 and later
  7. 40-250 ohm, Late model GM
  8. 10-180 ohm -VDO
Part Number: 9109

CATEGORY

Description

Use any fuel level gauge with an original or aftermarket fuel sender, no matter the OHM range.

Three push buttons with LED display for easy set up
Low fuel level warning at 10% and off at 15% with ability to trigger LED or relay
8 pre-programmed resistance ranges for popular fuel level sending units
Configurable with linear adjustments (F, ¾, ½, ¼, & E) between 0-1000 / 1000-0 OHM
Compact size – 3“ x 2-½” x ¾”
Pre-programmed: 240/33, 0/90, 0/30, 16/158, 73/10 (linear and non-linear), 10/180, 40/250

PROP 65 WARNING

This product may contain a chemical known by the State of California to cause cancer and birth defects or other reproductive harm. For more information goto https://www.p65warnings.ca.gov/

Additional information

Shipping Dimensions9 × 6 × 2 in

Tools

Classic Dash

What’s Needed For A Dash Installation:

Before embarking on the installation, we recommend rounding up the following tools and supplies:

  • Side cutter or “dykes” pliers
  • Soldering iron with solder (or “red” butt connectors)
  • Electrical/crimping pliers
  • Multi-meter (voltage tester)
  • Drill motor
  • 5/32″ drill bit
  • Crazy glue
  • Center punch or ice pick
  • Tape measure
  • Screwdrivers (Phillips & blade type)
  • Razor blade or box cutter
  • Hand files (fine and medium)
  • Open end wrench or socket set (3/8″ through 9/16″)
  • Shrink wrap with heating device or electrical tape for connections
