Description

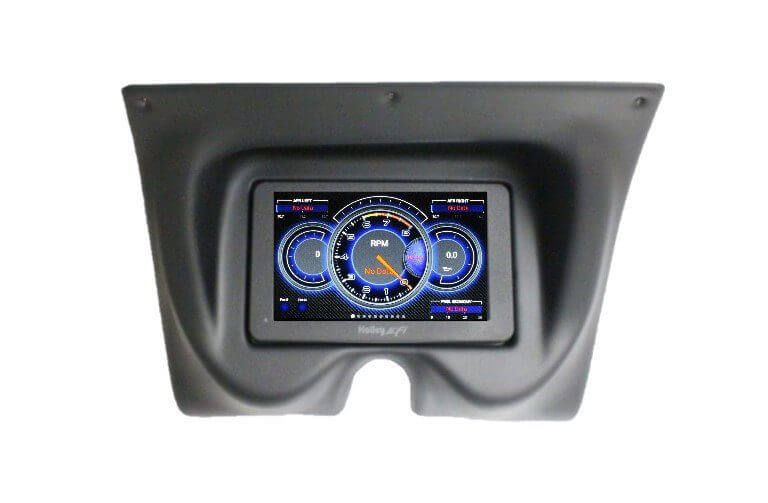

Holley EFI 7.5” Standalone Pro Dash (PN# 553-109) is completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need.
Measuring 7.5” wide, 4.625″ tall and 1” deep, it’s easily mounted in a Classic Dash panel for a variety of applications!
FEATURES:
NO ECU or fuel injection required.
- 7” low glare, high brightness, high contrast, full color touch screen
- 800 x 480 resolution with auto brightness and dimming features
- Operating voltage min 8V – 20V
- Includes USB GPS for speedometer display with a magnetic base for a quick and clean install
- Weather resistant aluminum housing with flexible mounting options
- Multiple gauge and indicator types with limitless customization options
- Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual Switch Panel (replaces the need for physical switches)
- Retains the same gauge customization flexibility as the EFI dash, but now allows use with any vehicle
- Powerful data log software provides in-depth analysis of all inputs / outputs, including integrated 3 axis accelerometer and GPS
- Built-in data logging playback
- Pair with a Holley EFI LED Light Bar (PN 553-107)
- User definable warnings for any input
- Configurable progressive shift lights and light bar
- Expandable internal storage on micro SD card
- Free software / firmware upgrades at holley.com
What’s Included:
- Classic Dash Panel
- Holley EFI 7.5” Standalone Pro Dash (PN #553-109)
- wiring harness / cables
- mounting hardware
- USB memory stick
- GPS antenna
- CTS sensor
- MAT sensor
- oil pressure sensor
