Holley EFI 7.5″ Standalone Pro Digital Dash Bundle

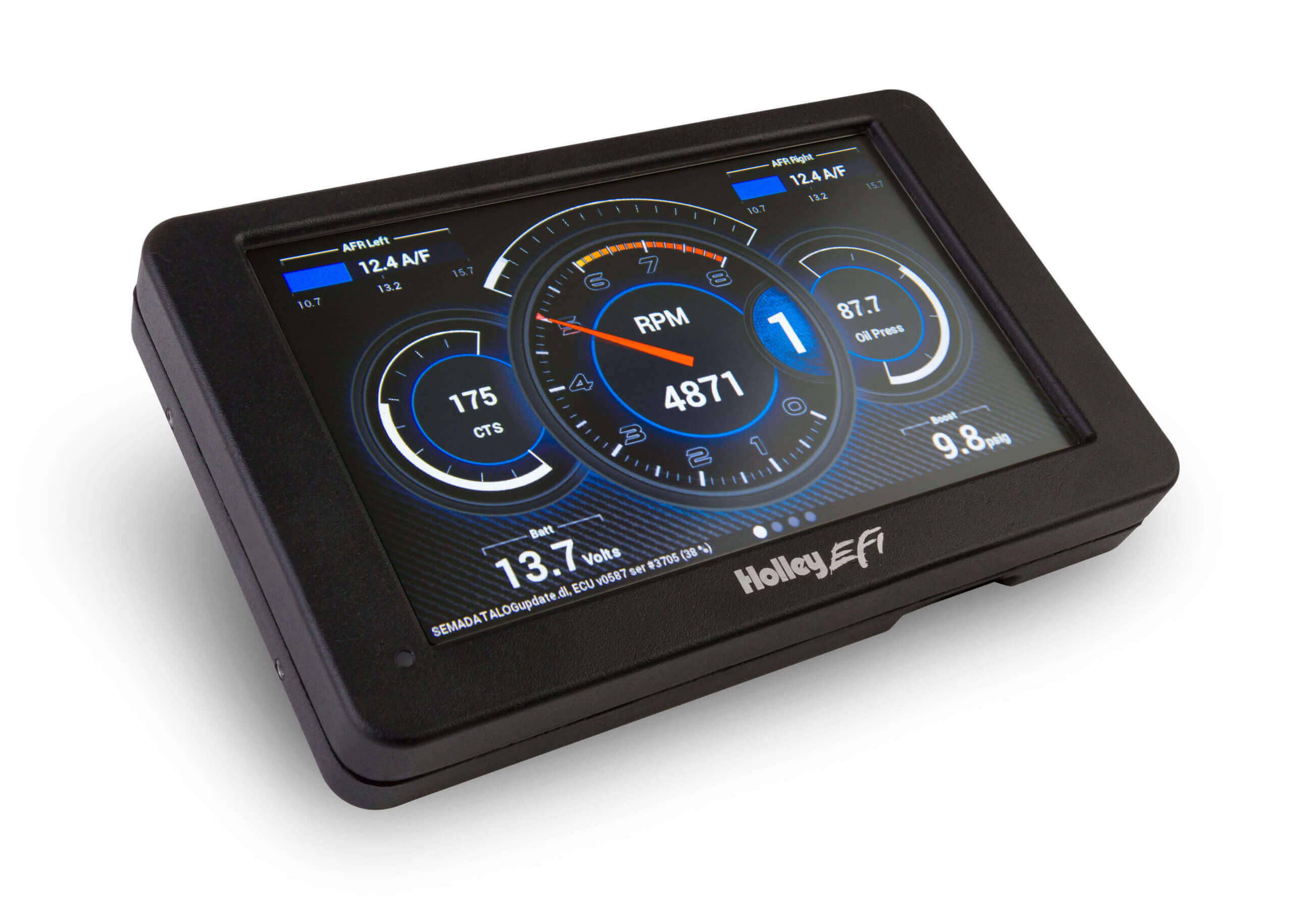

HOLLEY EFI 7.5” Standalone Pro Dash (PN# 553-109) is completely customizable with a variety of gauge and indicator screens that can be programmed to display any parameter you need. Measuring 7.5” wide, 4.625″ tall and 1” deep, it’s easily mounted in a Classic Dash panel for a variety of applications!



Holley EFI 7.5″ Standalone Pro Dash bundle features:


  • NO ECU or fuel injection required.


  • 7” low glare, high brightness, high contrast, full color touch screen
  • 800 x 480 resolution with auto brightness and dimming features
  • Operating voltage min 8V – 20V
  • Includes USB GPS for Speedometer display with a magnetic base for a quick and clean install
  • Weather resistant aluminum housing with flexible mounting options
  • Multiple gauge & indicator types with limitless customization options
  • Quickly toggle between multiple active screens (tune, warm-up, race, drive, etc.)
  • Virtual Switch Panel (replaces the need for physical switches)
  • Retains the same gauge customization flexibility as the EFI dash, but now allows use with any vehicle
  • Powerful data log software provides in-depth analysis of all inputs / outputs, including integrated 3 axis accelerometer and GPS
  • Built-in data logging playback
  • Pair with a Holley EFI LED Light Bar (PN 553-107)
  • User definable warnings for any input
  • Configurable progressive shift lights and light bar
  • Expandable internal storage on micro SD card
  • Free software / firmware upgrades at holley.com


  • What’s Included:
  • HOLLEY EFI 7.5” Standalone Pro Dash
  • wiring harness / cables
  • mounting hardware
  • USB memory stick
  • GPS antenna
  • CTS sensor
  • MAT sensor
  • oil pressure sensor
