Description

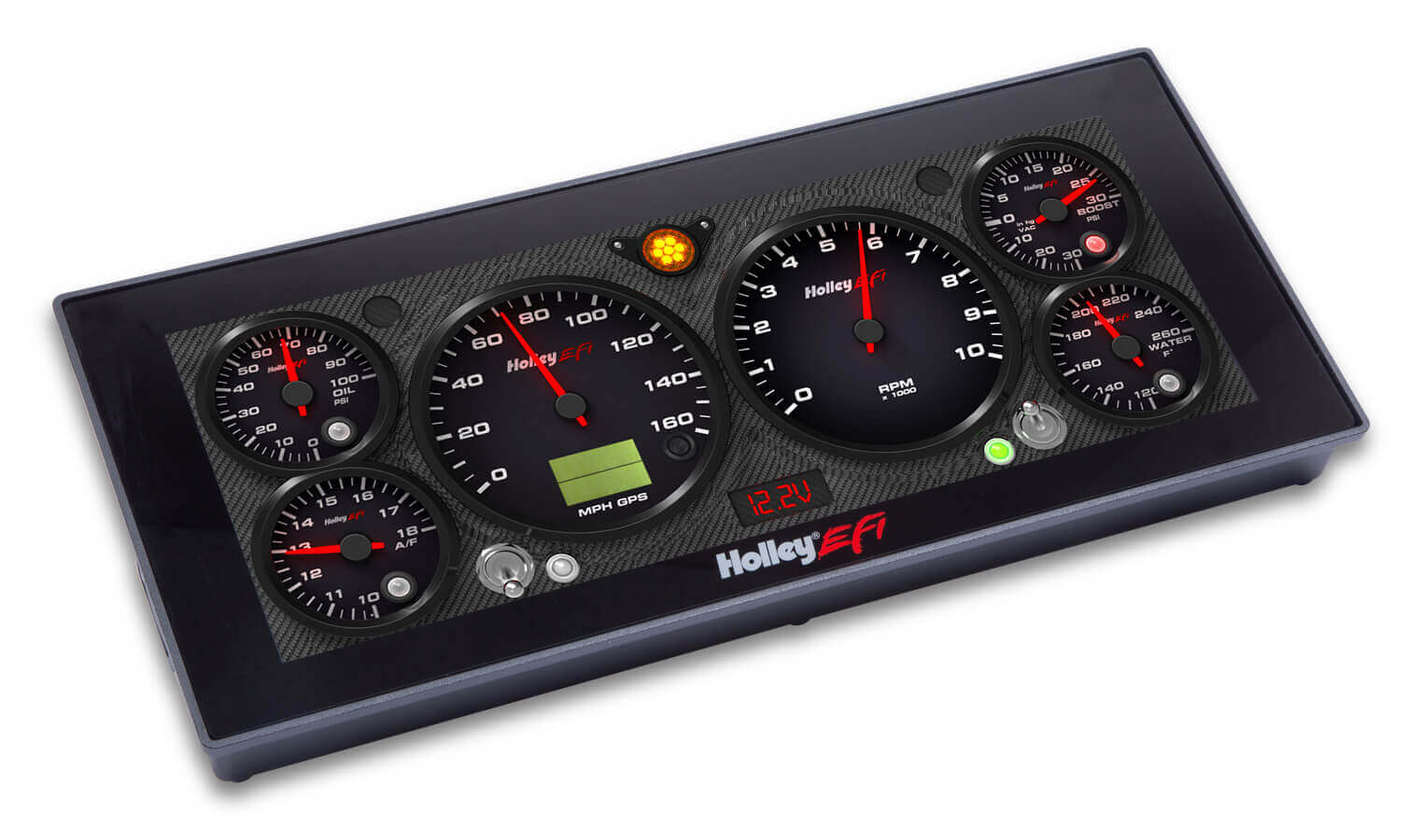

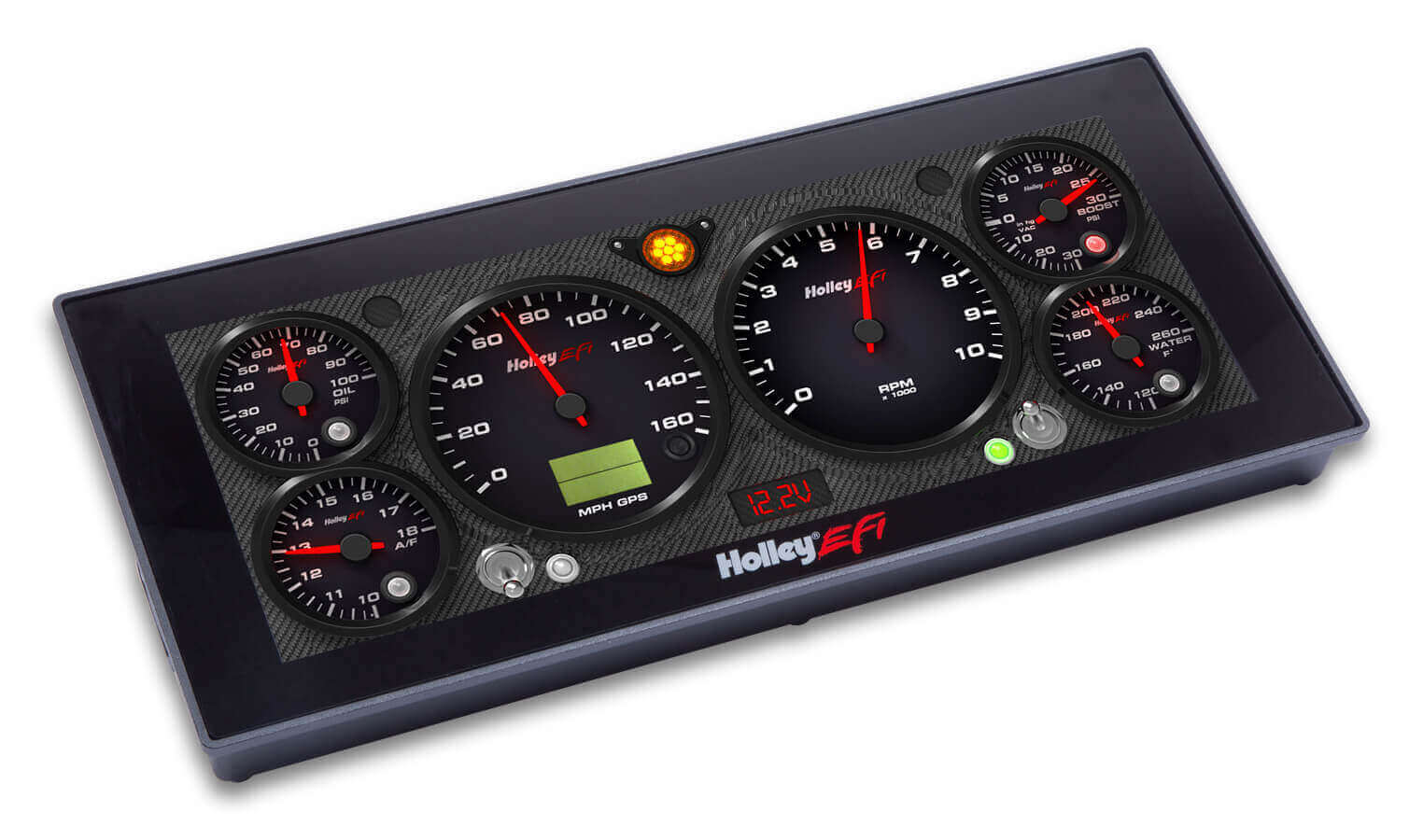

Holley EFI 12.3″ Standalone Pro Dash bundle features:
NO ECU or fuel injection required.
High resolution, state-of-the-art, multi-gauge touchscreen display with fully configurable layouts:
- Full color, capacitive touch screen with auto dimming offers crystal clear data, (day or night) – no stylus needed
- Quickly swipe between multiple active screens (tune, warm-up, race, drive, etc.)
- Virtual switch panel eliminates the need for external toggle switches
- 16 default backgrounds skins pre-loaded with unlimited options for importing custom layouts
- Built-in GPS with speed, odometer and trip odometer function (external antenna included)
- Integrated 10-LED programmable shift light w/ 4-LED warning indicators for other sensor inputs.
- Rendered analog (dials / needles) and digital gauge styles available
- Integrated datalogger
- Rugged, water-resistant case is constructed of cast aluminum for long life and durability
Plug and play features are pre-configured in the harness and include dash layouts / screens:
- Turn signals
- High beam
- Fuel level
- Engine vacuum / boost
Additional input and output functionality:
- 13 multi-configurable inputs
- 4 ground switched outputs
- Four speed channels (two dedicated) for RPM, driveshaft speed, or any other Hall effect speed input
- User definable channel alarms and warnings
Communications / Harness:
- 4 Pin Wiring Harness contains Power, Ground and CANbus connections
- Holley EFI CANbus connection for expanded capability with Holley EFI systems
- Expandable storage via USB
Integrated Datalogger:
- Internal Log Memory – 1 GB (expandable up to 32GB with addition of micro-SD card)
- External Logging to USB Flash Drive is also available for easy file management
- On-screen datalog playback allows you to review vital run information right on the dash
- Full analysis is available at www.holley.com.
Simple setup / programming: USB keyboard / mouse functionality makes it quick and easy to setup new layouts.
Fully Upgradeable:
- Upgradable with future software enhancements
- Can easily be converted for use with Holley EFI to monitor up to 238 real-time values such as RPM/TPS/Boost
- Compatible with Holley EFI Plug and Play Programmable Shift Light – Part Number 553-107
What’s Included:
- Holley EFI 12.3″ Standalone Pro Dash
- wiring harness / cables
- mounting hardware
- USB memory stick and CAN terminator
- GPS Antenna
(fuel pressure / oil pressure, water temp and air temp sensors sold separately) CLICK HERE
