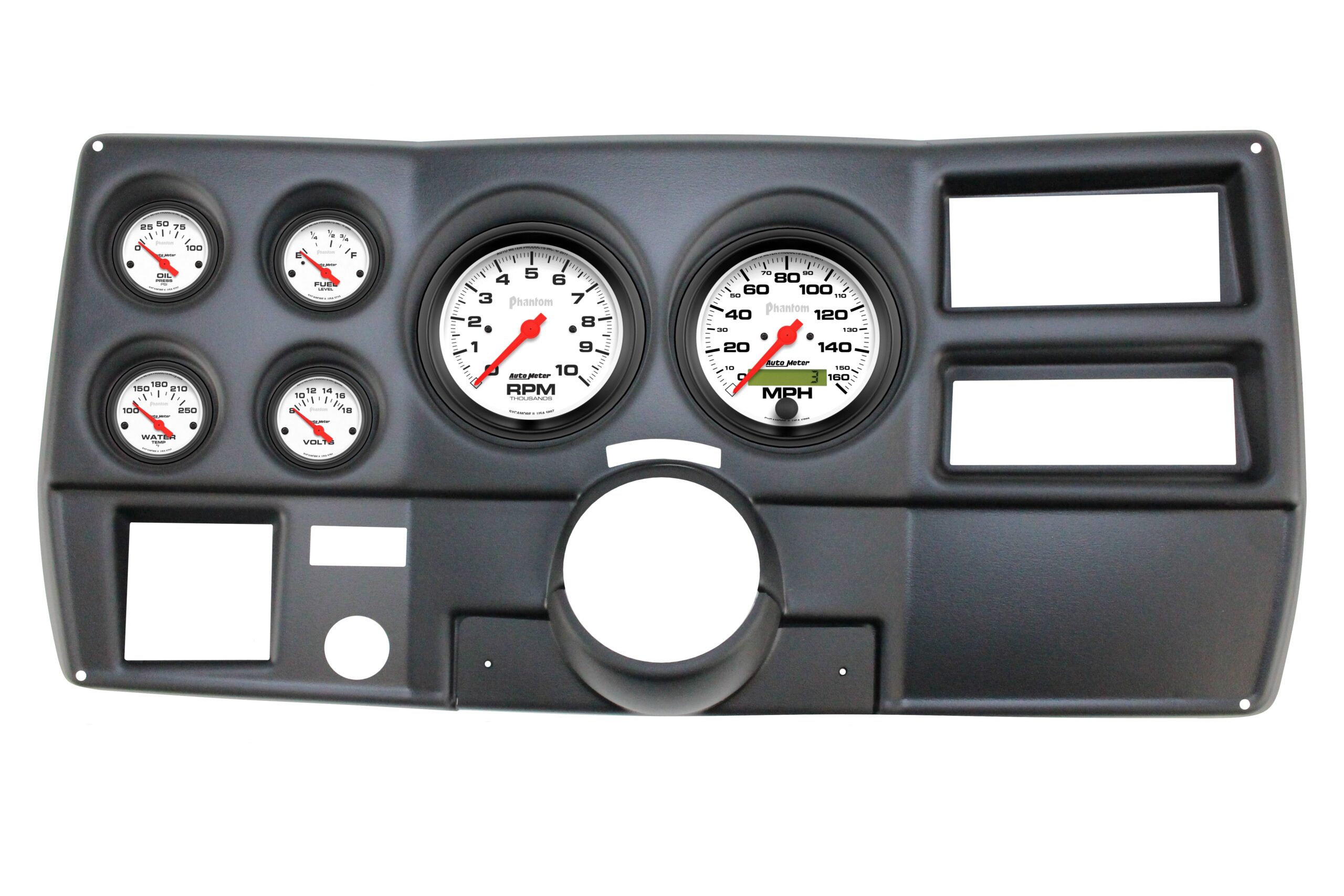

1973-83 Chevy / GMC Truck (5″ and 2-1/16″) Dash Panel

Click on the dash panel and gauge type of choice and see how your new Classic Dash will look.



Molded UV Resistant ABS Instrument Panel will replace the stock gauge panel.





Steering column undercover is INCLUDED with purchase of dash panel.







Dash :
Matte Black
Brushed Aluminum
Carbon Fiber
AC Vents :
Yes
No
Gauges : No Gauges
No Gauges
Phantom - Mechanical
Sport Comp - Mechanical
Ultra-Lite - Mechanical
Carbon Fiber
Phantom Electric
Sport Comp Electric
Ultra-Lite Electric
American Muscle
GT Series
Cobalt
Phantom II
Sport Comp II
Ultra-Lite II
C2 Gauges
NV Gauges
Concourse Black
Concourse Silver
Concourse White
Autocross Gray
Autocross Yellow
Clear selection

.

The speedometer sending unit required for electric speedometers is NOT included in the complete package and must be purchased separately.



Steering column undercover is INCLUDED with purchase of dash panel.





Complete Package Comes With:



• Gauge Wiring Harness*
• Oil Pressure and Water Temperature sending units*
• Turn Signal, High Beam and Parking Brake Indicator (LED) Kit*
• 5″ Speedometer
• 5″ Tachometer
• 2-1/16″ Fuel Level Gauge
• 2-1/16″ Oil Pressure Gauge
• 2-1/16″ Water Temperature Gauge
• 2-1/16″ Volt Gauge



Concourse Series gauge bundles include sending units. Wiring harness and LED kit NOT INCLUDED.



Elite Series gauge bundles include sending units, wiring harness, LED kit and GPS speedo sending unit.



*Wiring harness and sending units are NOT INCLUDED with Sport Comp Mechanical, Ultra-Lite Mechanical and Phantom Mechanical gauge bundles.

Tools

What’s Needed For A Dash Installation:

Before embarking on the installation, we recommend rounding up the following tools and supplies:

• Side cutter or “dykes” pliers
• Soldering iron with solder (or “red” butt connectors)
• Electrical/crimping pliers
• Multi-meter (voltage tester)
• Drill motor
• 5/32″ drill bit
• Crazy glue
• Center punch or ice pick
• Tape measure
• Screwdrivers (Phillips & blade type)
• Razor blade or box cutter
• Hand files (fine and medium)
• Open end wrench or socket set (3/8″ through 9/16″)
• Shrink wrap with heating device or electrical tape for connections
