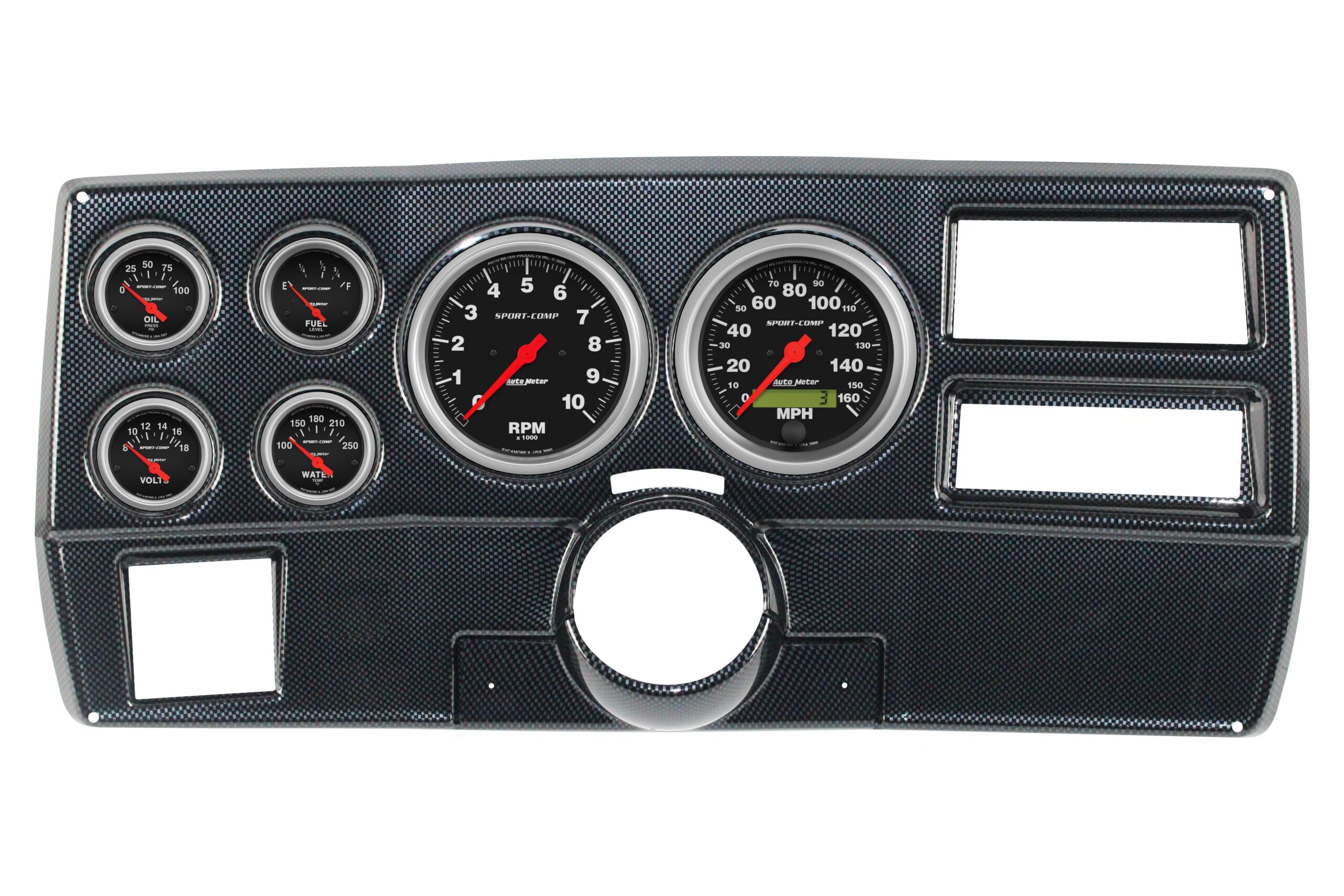

1984-87 Chevy / GMC Truck (5″ and 2-1/16″) Dash Panel

Click on the dash panel and gauge type of choice and see how your new Classic Dash will look.



Molded UV Resistant ABS Instrument Panel will replace the stock gauge panel.





Steering column undercover is INCLUDED with purchase of dash panel.







Dash :
Matte Black
Brushed Aluminum
Carbon Fiber
AC Vents : Yes
Yes
No
Gauges : No Gauges
No Gauges
Phantom - Mechanical
Sport Comp - Mechanical
Ultra-Lite - Mechanical
Carbon Fiber
Phantom Electric
Sport Comp Electric
Ultra-Lite Electric
American Muscle
GT Series
Cobalt
Phantom II
Sport Comp II
Ultra-Lite II
C2 Gauges
NV Gauges
Concourse Black
Concourse Silver
Concourse White
Autocross Gray
Autocross Yellow
Clear selection
SKU: N/A Category: Tags: , , , , , , ,

1984-87 Chevy / GMC Truck (5″ and 2-1/16″) Dash Panel

The speedometer sending unit required for electric speedometers is NOT included in the complete package and must be purchased separately.

Steering column undercover is INCLUDED with purchase of dash panel.



Complete Package Comes With:



• Gauge Wiring Harness*
• Oil Pressure and Water Temperature sending units*
• Turn Signal, High Beam and Parking Brake Indicator (LED) Kit*
• 5″ Speedometer
• 5″ Tachometer
• 2-1/16″ Fuel Level Gauge
• 2-1/16″ Oil Pressure Gauge
• 2-1/16″ Water Temperature Gauge
• 2-1/16″ Volt Gauge



*Wiring harness and sending units are NOT INCLUDED with Sport Comp Mechanical, Ultra-Lite Mechanical, Phantom Mechanical, and Concourse Series gauges.

Concourse kits come with their own sending units for the water temp and oil pressure gauges. LED kit not included.
